SAQ 100th anniversary broadcast

M0RVB

Good copy of SAQ here this morning during their 100th annoversary broadcast at 09:00 UTC. The reception was via a YouLoop in the loft angled towards SAQ, an Airspy HF+ connected to the Mac via USB, and SDRpp on the Mac.

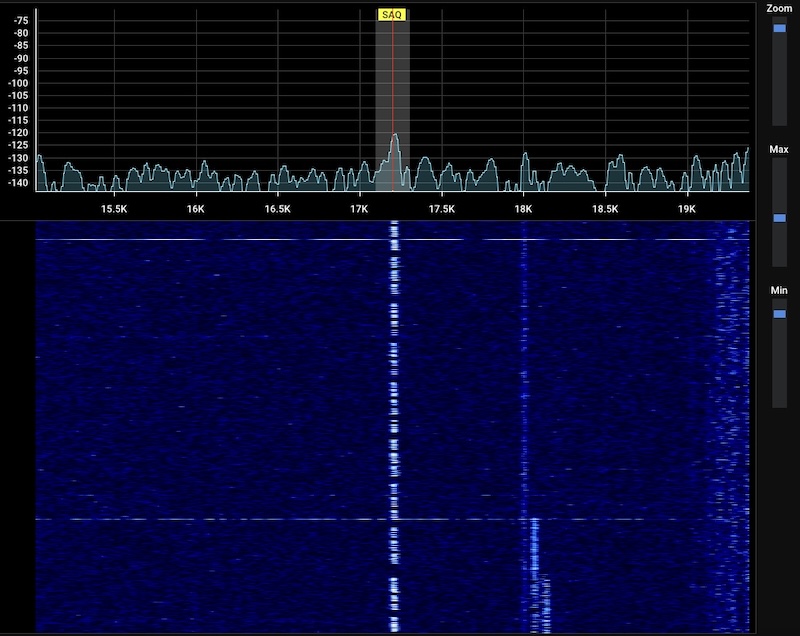

The first picture is a screenshot with SAQ featuring, the display shifted and zoomed such that the 'loud' stations further up the band are out of the way. SDRpp has AGC turned off, bandwidth set to 200Hz and no attenuation. The morse was perfecly readable by ear.

A screenshot of the reception of SAQ on 2nd July 2025

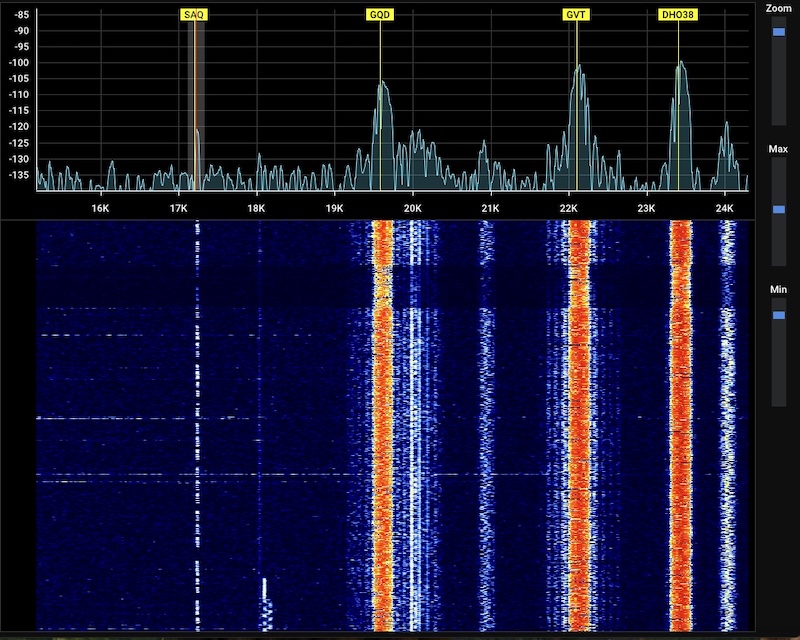

This second screenshot has the loud stations on screen as well as a comparison.

A screenshot of SAQ with louder stations visible as well

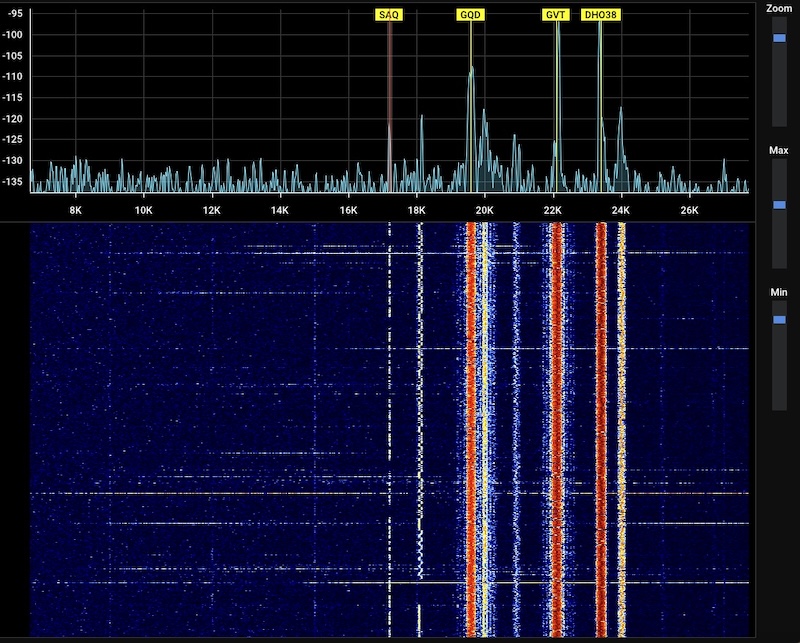

There was a secod broadcast in the afternoon, with equally good reception but slightly more difficult on the ear.

A screenshot of an SAQ broadcast along with some stronger signals
